Cables Main Page Image

Cables

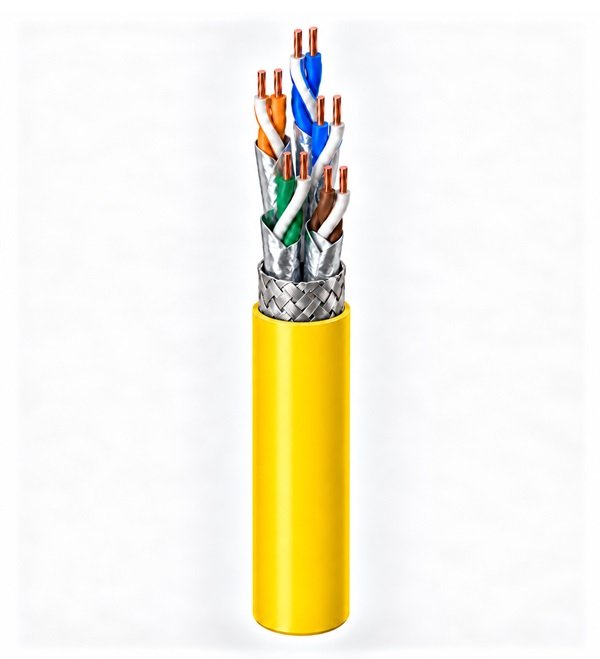

Category 8

Features and benefits
  • LSZH-IEC 60332-1; IEC 60754 1&2; IEC 61034-2
  • Specified and tested upto 1000MHz
  • Excellent RFI/EMI interference attenuation to enable installation in high electrical noise locations.
  • Compliant to ISO/IEC 11801 Class Fa

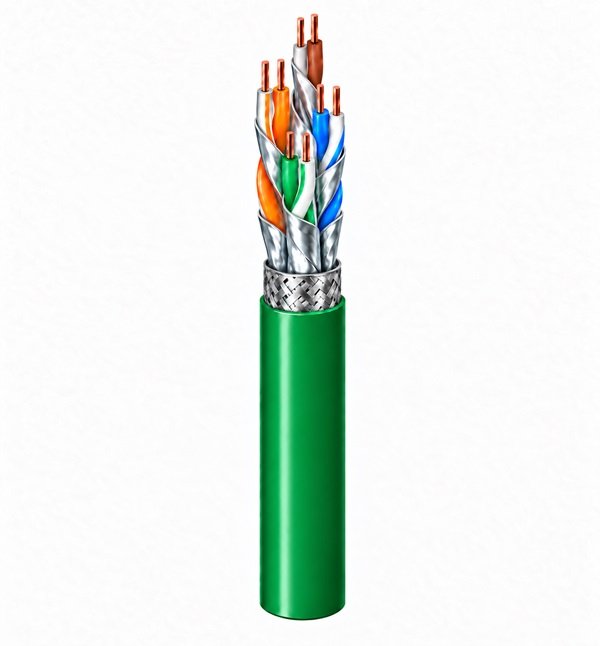

Category-8 Copper Cable
Category-8 Cable Image

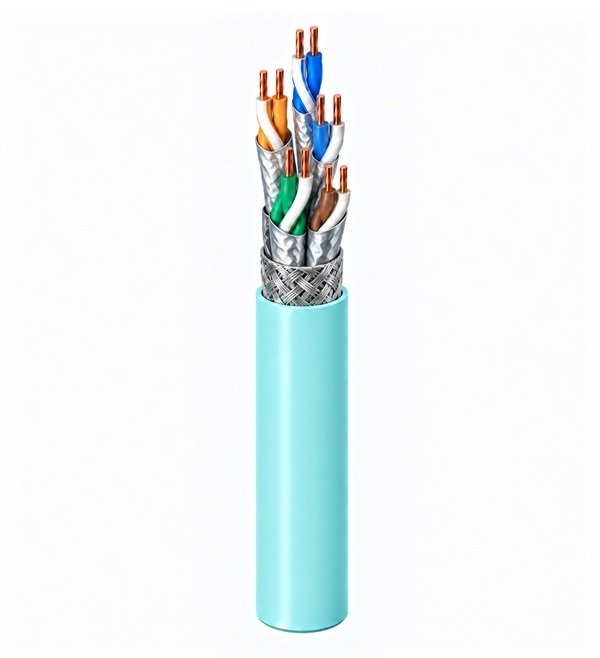

Category 6A S/FTP 500MHz

Features and benefits
  • LSZH-IEC 60332-1; IEC 60754 1&2; IEC 61034-2
  • Specified and tested upto 500MHz or higher if required
  • Excellent RFI/EMI interference attenuation to enable installation in high electrical noise locations.
  • Compliant to ANSI/TIA 568-C.2 Cat6, ISO/IEC 11801 Class E

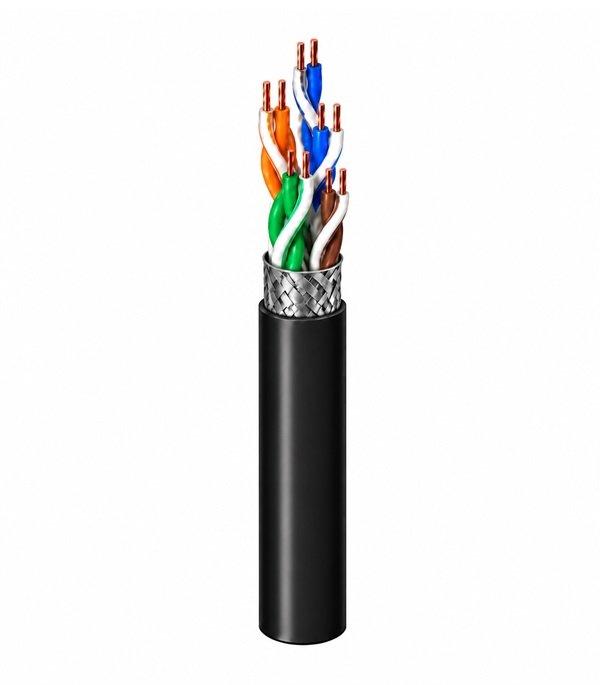

Cat-6A Cable
Cat-6A Cable

Category 6 U/FTP 250MHz

Features and benefits
  • LSZH-IEC 60332-1; IEC 60754 1&2; IEC 61034-2
  • Specified and tested upto 250MHz
  • Very good RFI/EMI interference attenuation to enable installation in high electrical noise locations.
  • Compliant to ANSI/TIA 568-C.2 Cat6, ISO/IEC 11801 Class E
Cat-6 U/FTP 250MHZ
Cat-6 U/FTP 250MHZ

Fiber Optic, Loose-tube cable, non-armored

Features and benefits
  • Fiber-count 2-144 fibers
  • Multi loose-tube design
  • LSZH jacket for Indoor/Outdoor applications
  • Lightweight construction
  • Plenum (OFNP / FT6), LSZH Riser OFNR (FT-4-ST1)
  • OS2, OM3 and OM4 performance types
  • Color-coded fibers for easy identification
  • Compact design for limited conduit space
  • Rodent resistant
Fiber Optic Cable
Fiber Optic Cable
Buffer tube Numbers Color Buffer tube Numbers Color Buffer tube Numbers Color
1 Blue 13 Blue/BK stripe(S) 25 Blue/BK stripe(D)
2 Orange 14 Orange/BK stripe(S) 26 Orange/BK stripe(D)
3 Green 15 Green/BK stripe(S) 27 Green/BK stripe(D)
4 Brown 16 Brown/BK stripe(S) 28 Brown/BK stripe(D)
5 Grey 17 Grey/BK stripe(S) 29 Grey/BK stripe(D)
6 White 18 White/BK stripe(S) 30 White/BK stripe(D)
7 Red 19 Red/BK stripe(S) 31 Red/BK stripe(D)
8 Black 20 Black/BK stripe(S) 32 Black/BK stripe(D)
9 Yellow 21 Yellow/BK stripe(S) 33 Yellow/BK stripe(D)
10 Voilet 22 Voilet/BK stripe(S) 34 Voilet/BK stripe(D)
11 Pink 23 Pink/BK stripe(S) 35 Pink/BK stripe(D)
12 Aqua 24 Aqua/BK stripe(S) 36 Aqua/BK stripe(D)
Application OS1/OS2 Singlemode
(1310/1385
/1550)		 OM1 Multimode (850/1550) OM2 Multimode (850/1550) OM3 Multimode (850/1550) OM4 Multimode (850/1550)
100Base-FX,
Ethernet,
@1300nm		 - 2000m 2000m 2000m 2000m
100Base-LX,
@1310nm		 10000m - - - -
100Base-SX,Gigabit,
Ethernet,
@850nm		 - 275m 550m 550m 550m
100Base-LX,
Ethernet,
@1310nm		 1000m 550m 550m 550m 550m
10GBase-SR,
10Gbps,
@850nm		 - 33m 82m 300m 550m
10GBase-LR,
10Gbps,
@1310nm		 1000m - - - -
40GBase-SR,
40Gbps,
@850nm		 - - - 100m 150m
40GBase-LR4,
40Gbps,
@1310nm		 1000m - - - -
100GBase-SR10,
100Gbps,
@850nm		 1000m - - 100m 150m
100Base-LR4,
100Gbps,
@1310nm		 1000m
100Base-ER4,
100Gbps,
@1550nm		 3000m

Fiber Optic, Loose-tube cable, non-armored

Features and benefits
  • Fiber-count 12-576 fibers
  • Multi loose-tube design
  • LSZH jacket for Indoor/Outdoor applications
  • Lightweight construction
  • Corrugated steel armoring
  • OS2, OM3 and OM4 performance types
  • Color-coded fibers for easy identification
  • Compact design for limited conduit space
  • Rodent resistant
Fiber Optic Cable
Fiber Optic Cable
Transmission and Performance
Buffer tube Numbers Color Buffer tube Numbers Color Buffer tube Numbers Color
1 Blue 13 Blue/BK stripe(S) 25 Blue/BK stripe(D)
2 Orange 14 Orange/BK stripe(S) 26 Orange/BK stripe(D)
3 Green 15 Green/BK stripe(S) 27 Green/BK stripe(D)
4 Brown 16 Brown/BK stripe(S) 28 Brown/BK stripe(D)
5 Grey 17 Grey/BK stripe(S) 29 Grey/BK stripe(D)
6 White 18 White/BK stripe(S) 30 White/BK stripe(D)
7 Red 19 Red/BK stripe(S) 31 Red/BK stripe(D)
8 Black 20 Black/BK stripe(S) 32 Black/BK stripe(D)
9 Yellow 21 Yellow/BK stripe(S) 33 Yellow/BK stripe(D)
10 Voilet 22 Voilet/BK stripe(S) 34 Voilet/BK stripe(D)
11 Pink 23 Pink/BK stripe(S) 35 Pink/BK stripe(D)
12 Aqua 24 Aqua/BK stripe(S) 36 Aqua/BK stripe(D)
Transmission and Performance
Temperature Range Value
Storage -25°C to +80°C
Service -25°C to +70°C
Installation -20°C to +70°C
CATEGORY PART NUMBER PRODUCT DESCRIPTION

COPPER CABLES
CAT-8 MK-C8SF22L CAT8 4x2x22 AWG S/FTP, LSZH (8.5mm)

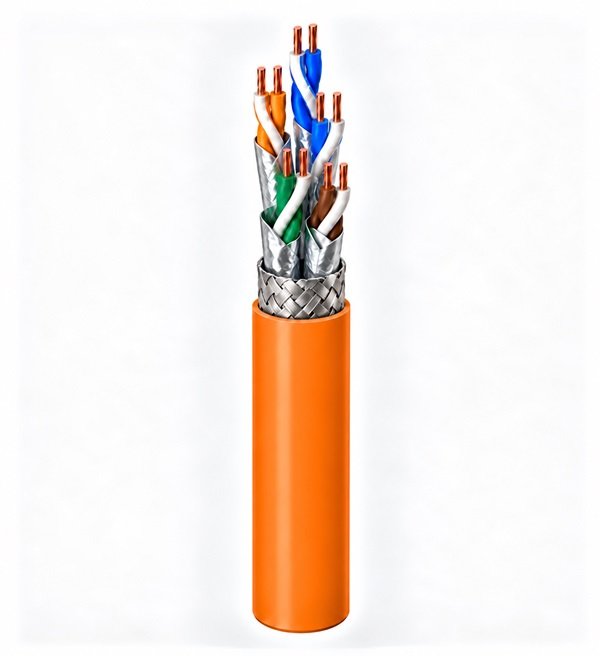

CAT-7A MK-C7ASF22L CAT7A 4x2x22 AWG S/FTP, LSZH (8.3mm)
MK-C7ASF22P CAT7A 4x2x22 AWG S/FTP, PVC (8.3mm)

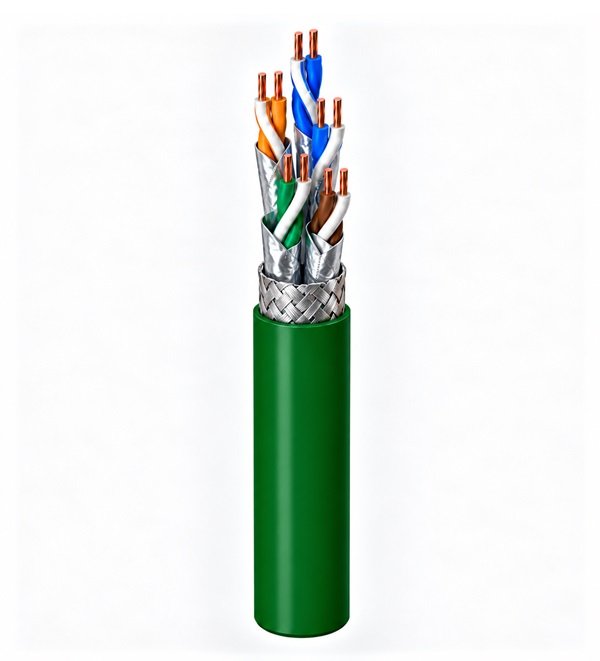

CAT-7 MK-C7SF23L CAT7 4x2x23 AWG S/FTP, LSZH (7.8mm)
MK-C7SF23P CAT7 4x2x23 AWG S/FTP, PVC (7.8mm)

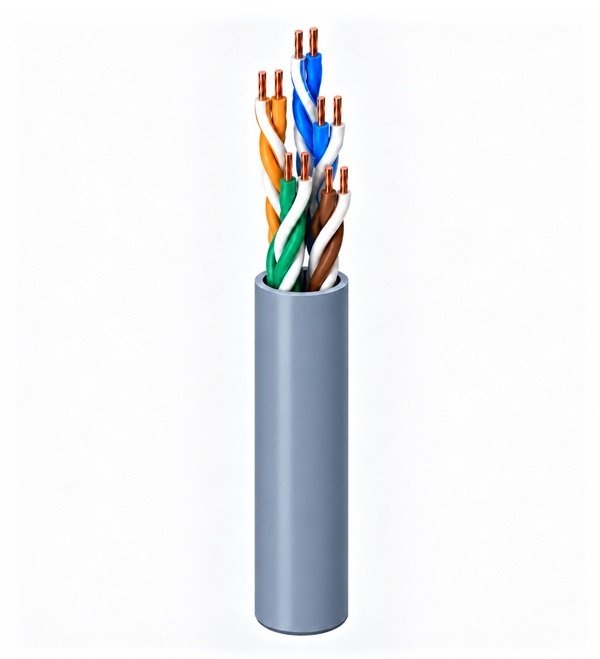

MK-C6AUU23L CAT6A 4x2x23 AWG U/UTP, LSZH (7.8mm)
MK-C6AUU23P CAT6A 4x2x23 AWG U/UTP, PVC (7.8mm)

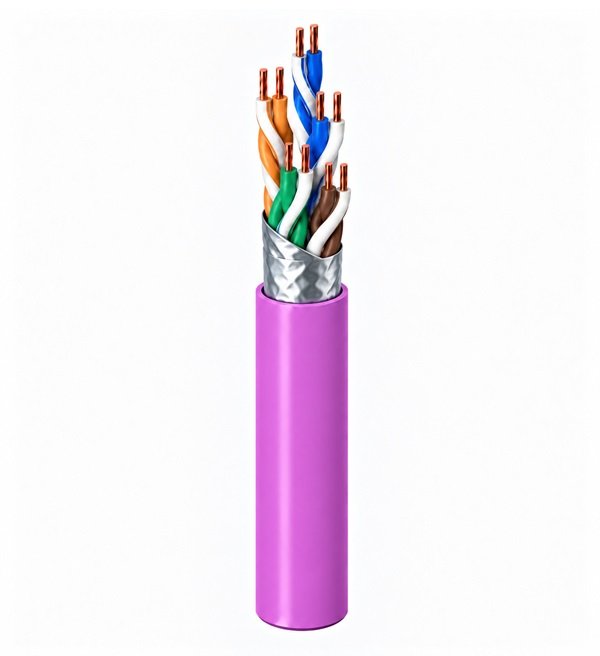

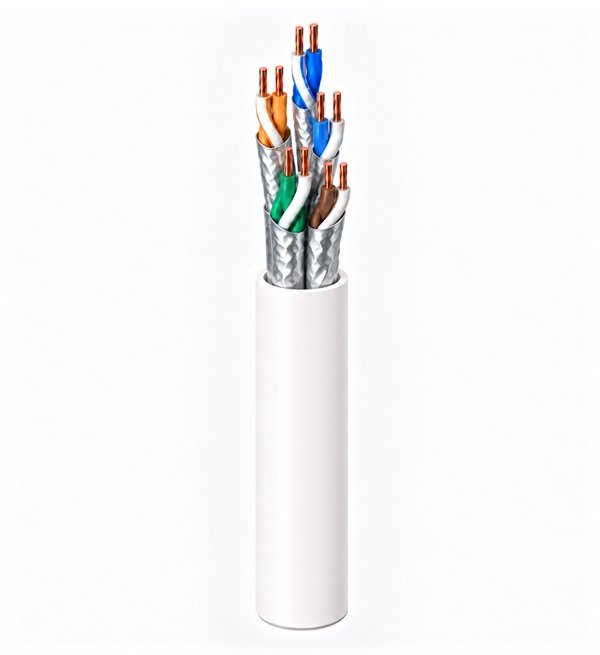

MK-C6AUF23L CAT6A 4x2x23 AWG U/FTP, LSZH (7.5mm)
MK-C6AUF23P CAT6A 4x2x23 AWG U/FTP, PVC (7.5mm)
CAT-6A MK-C6ASF23L CAT6A 4x2x23 AWG S/FTP, LSZH (7.8mm)
MK-C6ASF23P CAT6A 4x2x23 AWG S/FTP, PVC (7.8mm)
MK-C6AFU23L CAT6A 4x2x23 AWG F/UTP, LSZH (8.2mm)
MK-C6AFU23P CAT6A 4x2x23 AWG F/UTP, PVC (8.2mm)

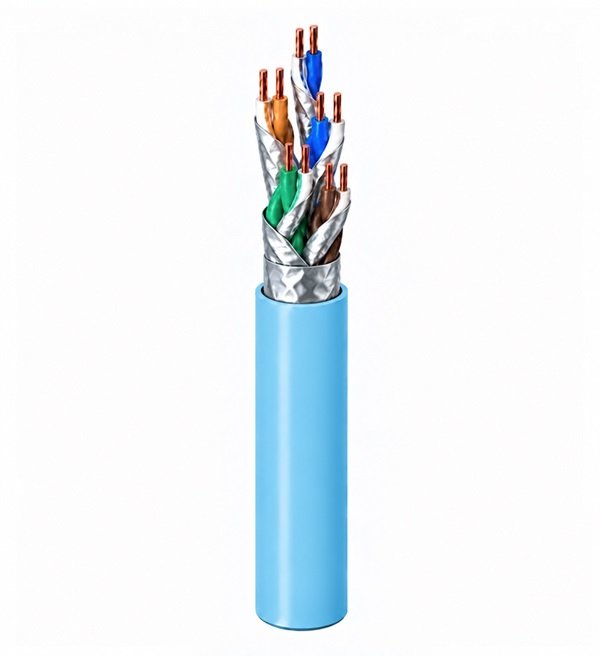

MK-C6AFF23L CAT6A 4x2x23 AWG F/FTP, LSZH (7.8mm)
MK-C6AFF23P CAT6A 4x2x23 AWG F/FTP, PVC (7.8mm)

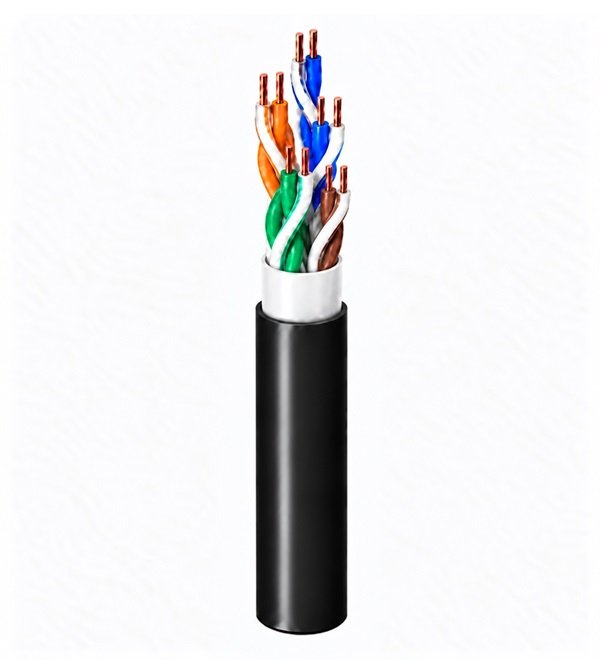

MK-C6U23PEL CAT6 4x2x24 AWG U/UTP, LSZH, PE (7.2mm)
MK-C6U23PEP CAT6 4x2x24 AWG U/UTP, PVC, PE (7.2mm)
MK-C6U23APEL CAT6 4x2x23 AWG U/UTP, LSZH, PE (10.0mm)
MK-C6U23APEP CAT6 4x2x23 AWG U/UTP, PVC, PE (10.0mm)

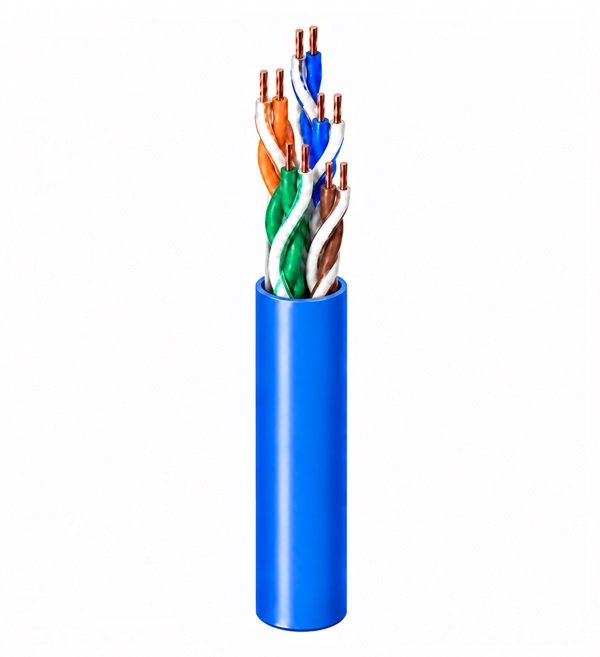

MK-C6U23L CAT6 4x2x23 AWG U/UTP, LSZH (6.0mm)
MK-C6U23P CAT6 4x2x23 AWG U/UTP, PVC (6.0mm)
MK-C6U24L CAT6 4x2x24 AWG U/UTP, LSZH (5.8mm)
CAT-6 MK-C6U24P CAT6 4x2x24 AWG U/UTP, PVC (5.8mm)

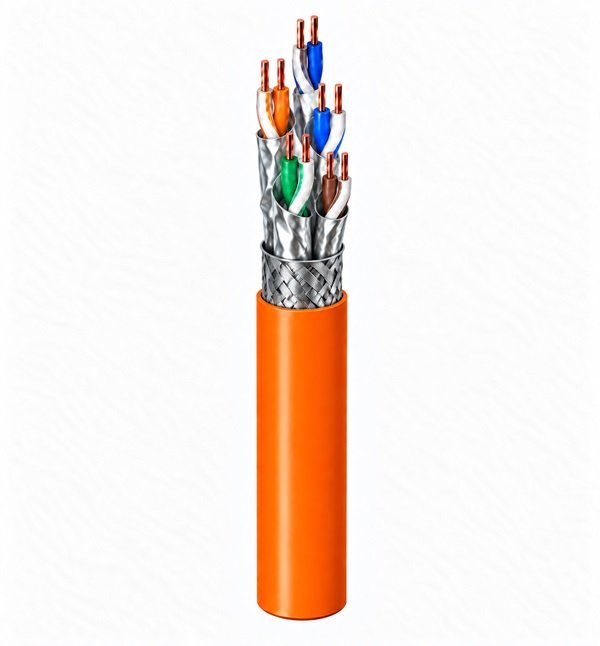

MK-C6SF23L CAT6 4x2x23 AWG S/FTP, LSZH (7.5mm)
MK-C6SF23P CAT6 4x2x23 AWG S/FTP, PVC (7.5mm)

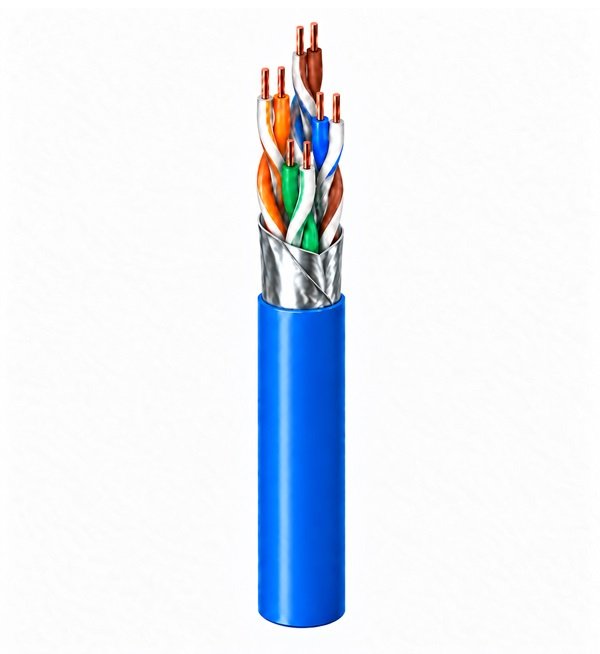

MK-C6FU23L CAT6 4x2x24 AWG F/UTP, LSZH (7.3mm)
MK-C6FU23P CAT6 4x2x24 AWG F/UTP, PVC (7.3mm)

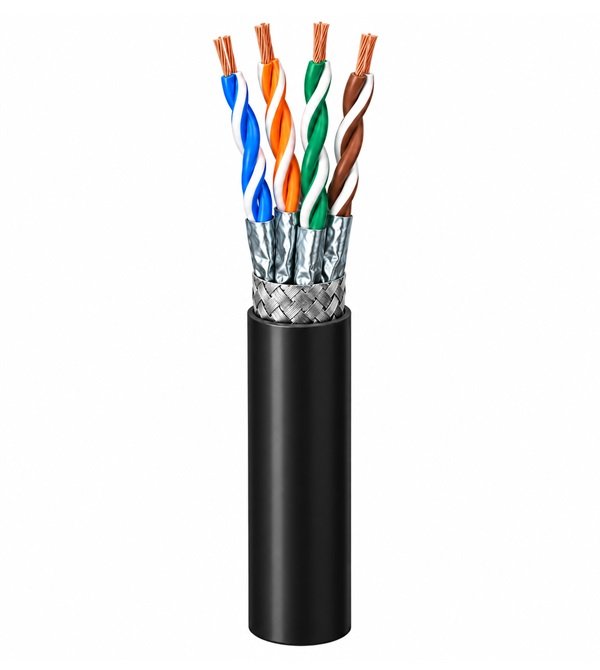

MK-C6FF23L CAT6 4x2x23 AWG F/FTP, LSZH (7.6mm)
MK-C6FF23P CAT6 4x2x23 AWG F/FTP, PVC (7.6mm)

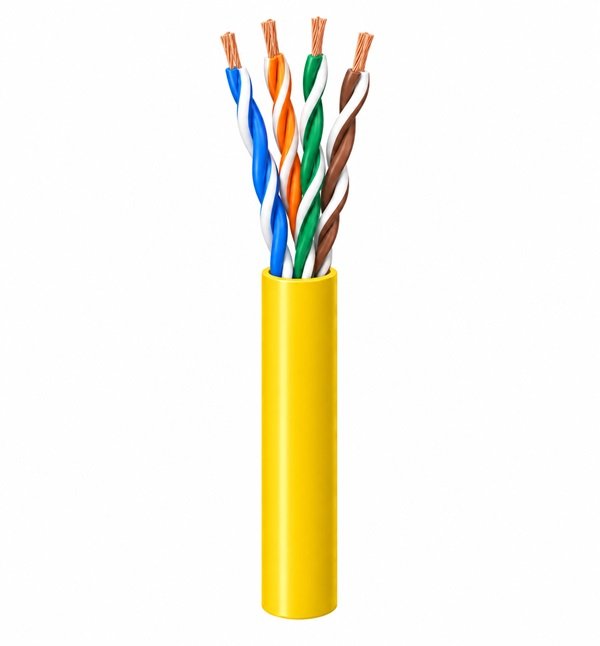

MK-C5U24L CAT5e 4x2x24 AWG U/UTP, LSZH (5.0mm)
MK-C5U24P CAT5e 4x2x24 AWG U/UTP, PVC (5.0mm)
CAT-5E MK-C5SF24L CAT5e 4x2x24 AWG S/FTP, LSZH (7.0mm)
MK-C5SF24P CAT5e 4x2x24 AWG S/FTP, PVC (7.0mm)

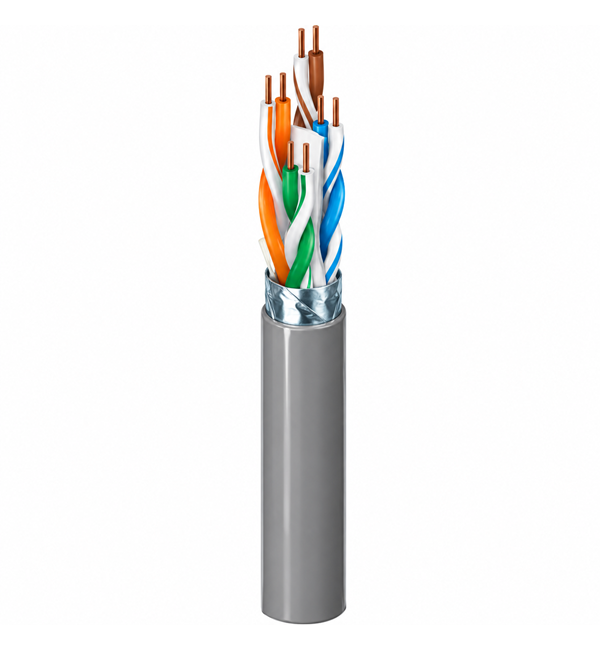

MK-C5FU24L CAT5e 4x2x24 AWG S/FTP, LSZH (7.0mm)
MK-C5FU24P CAT5e 4x2x24 AWG S/FTP, PVC (7.0mm)
Fiber Mode PART NUMBER PRODUCT DESCRIPTION

FIBER CABLES
Indoor/Outdoor
MK-TB2C100SM-FTT 9/125μm (OS1/2) TB, SM, LSZH 2 Core FFTH Drop Cable
Fiber Optic,
 MK-TB4C100SM-FTT 9/125μm (OS1/2) TB, SM, LSZH 4 Core FFTH Drop Cable
Drop Cable
 MK-TB2C100SM-ARFT 9/125μm (OS1/2) TB, SM, LSZH 2 Core FFTH Aeriac FIG 8 Drop Cable
MK-TB4C100SM-ARFTT 9/125μm (OS1/2) TB, SM, LSZH 4 Core FFTH Aeriac FIG 8 Drop Cable
Armoured Loose Tube Cable
MK-LT4C100SM-AR 9/125µm (OS1/2) LT, ARMOURED, CST, 4 Core Singlemode Cable
SingleMode
 MK-LT6C100SM-AR 9/125µm (OS1/2) LT, ARMOURED, CST, 6 Core Singlemode Cable
9/125 μm OS1/2
MK-LT12C100SM-AR 9/125µm (OS1/2) LT, ARMOURED, CST, 12 Core Singlemode Cable
4-24 Core
 MK-LT16C100SM-AR U9/125µm (OS1/2) LT, ARMOURED, CST, 16 Core Singlemode Cable
MK-LT24C100SM-AR 9/125µm (OS1/2) LT, ARMOURED, CST, 24 Core Singlemode Cable
Armoured Multi Loose Tube Cable
MK-MLT48C100SM-AR 9/125μm (OS1/2) LT AMOURED 48 Core, Singlemode, Multi Loose Tube Cable
SingleMode
 MK-MLT72C100SM-AR 9/125μm (OS1/2) LT AMOURED 72 Core, Singlemode, Multi Loose Tube Cable
9/125 μm OS1/2
MK-MLT96C100SM-AR 9/125μm (OS1/2) LT AMOURED 96 Core, Singlemode, Multi Loose Tube Cable
48-288 Core
 MK-MLT144C100SM-AR 9/125μm (OS1/2) LT AMOURED 744 Core, Singlemode, Multi Loose Tube Cable
MK-MLT288C100SM-AR 9/125μm (OS1/2) LT AMOURED 288 Core, Singlemode, Multi Loose Tube Cable
External Loose Tube
MK-LT4C100SM 9/125μm (OS1/2) LT, 4 Core Singlemode Universal Cable
Singlemode
 MK-LT6C100SM 9/125μm (OS1/2) LT, 6 Core Singlemode Universal Cable
9/125 μm OS1/2
 MK-LT12C100SM 9/125μm (OS1/2) LT, 12 Core Singlemode Universal Cable
4-24 Core
 MK-LT16C100SM 9/125μm (OS1/2) LT, 16 Core Singlemode Universal Cable
MK-LT24C100SM 9/125μm (OS1/2) LT, 24 Core Singlemode Universal Cable
External Multi Loose Tube
MK-MLT48C100SM 9/125μm (OS1/2), MLT, 48 Core Singlemode Universal Multi Loose Tube Cable
SingleMode
MK-MLT72C100SM 9/125μm (OS1/2), MLT, 72 Core Singlemode Universal Multi Loose Tube Cable
9/125 μm OS1/2
MK-MLT96C100SM 9/125μm (OS1/2), MLT, 96 Core Singlemode Universal Multi Loose Tube Cable
48-288 Core
MK-MLT144C100SM 9/125μm (OS1/2), MLT, 144 Core Singlemode Universal Multi Loose Tube Cable
MK-MLT192C100SM 9/125μm (OS1/2), MLT,192 Core Singlemode Universal Multi Loose Tube Cable
MK-MLT288C100SM 99/125μm (OS1/2), MLT, 288 Core Singlemode Universal Multi Loose Tube Cable
Tight Buffered Cable
MK-TB 4 C100SM 9/125μm (OS1/2) TB, LSZH, 4 Core Singlemode Cable
MK-TB 6 C100SM 9/125μm (OS1/2) TB, LSZH, 6 Core Singlemode Cable
SingleMode
MK-TB12C100SM 9/125μm (OS1/2) TB, LSZH, 12 Core Singlemode Cable
9/125 μm OS1/2
MK-TB16C100SM 9/125μm (OS1/2) TB, LSZH, 16 Core Singlemode Cable
4-24 Core
MK-TB24C100SM 9/125μm (OS1/2) TB, LSZH, 24 Core Singlemode Cable
MK-TB48C100SM 9/125μm (OS1/2) TB, LSZH, 48 Core Singlemode Cable
Armoured Loose Tube
MK-LT4C102MM-AR 50/125μm (OM2), LT, MM, MDPE, 4 Core Armoured Fiber Optic Cable
MK-LT6C102MM-AR 50/125μm (OM2), LT, MM, MDPE, 6 Core Armoured Fiber Optic Cable
Multimode
 MK-LT12C102MM-AR 50/125μm (OM2), LT, MM, MDPE, 12 Core Armoured Fiber Optic Cable
50/125 μm OM2
 MK-LT16C102MM-AR 50/125μm (OM2), LT, MM, MDPE, 16 Core Armoured Fiber Optic Cable
MK-LT24C102MM-AR 50/125μm (OM2), LT, MM, MDPE, 24 Core Armoured Fiber Optic Cable
MK-LT4C103MM-AR 50/125μm (OM3), LT, MM, MDPE, 4 Core Armoured Fiber Optic Cable
MK-LT6C103MM-AR 50/125μm (OM3), LT, MM, MDPE, 6 Core Armoured Fiber Optic Cable
Multimode
 MK-LT12C103MM-AR 50/125μm (OM3), LT, MM, MDPE, 12 Core Armoured Fiber Optic Cable
50/125 μm OM3
 MK-LT16C103MM-AR 50/125μm (OM3), LT, MM, MDPE, 16 Core Armoured Fiber Optic Cable
MK-LT24C103MM-AR 50/125μm (OM3), LT, MM, MDPE, 24 Core Armoured Fiber Optic Cable
MK-LT4C104MM-AR 50/125μm (OM4), LT, MM, MDPE, 4 Core Armoured Fiber Optic Cable
MK-LT6C104MM-AR 50/125μm (OM4), LT, MM, MDPE, 6 Core Armoured Fiber Optic Cable
Multimode
 MK-LT12C104MM-AR 50/125μm (OM4), LT, MM, MDPE, 12 Core Armoured Fiber Optic Cable
50/125 μm OM4
 MK-LT16C104MM-AR 50/125μm (OM4), LT, MM, MDPE, 16 Core Armoured Fiber Optic Cable
MK-LT24C104MM-AR 50/125μm (OM4), LT, MM, MDPE, 24 Core Armoured Fiber Optic Cable
Loose Tube Cable
MK-LT4C102MM 50/125μm (OM2), LT, MM, LSZH, 4 Core Universal Cable
MK-LT6C102MM 50/125μm (OM2), LT, MM, LSZH, 6 Core Universal Cable
Multimode
 MK-LT12C102MM 50/125μm (OM2), LT, MM, LSZH, 12 Core Universal Cable
50/125 μm OM2
 MK-LT16C102MM 50/125μm (OM2), LT, MM, LSZH, 16 Core Universal Cable
MK-LT24C102MM 50/125μm (OM2), LT, MM, LSZH, 24 Core Universal Cable
MK-LT4C103MM 50/125μm (OM3), LT, MM, LSZH, 4 Core Universal Cable
MK-LT6C103MM 50/125μm (OM3), LT, MM, LSZH, 6 Core Universal Cable
Multimode
 MK-LT12C103MM 50/125μm (OM3), LT, MM, LSZH, 12 Core Universal Cable
50/125 μm OM3
 MK-LT16C103MM 50/125μm (OM3), LT, MM, LSZH, 16 Core Universal Cable
MK-LT24C103MM 50/125μm (OM3), LT, MM, LSZH, 24 Core Universal Cable
MK-LT4C104MM 50/125μm (OM4), LT, MM, LSZH, 4 Core Universal Cable
MK-LT6C104MM 50/125μm (OM4), LT, MM, LSZH, 6 Core Universal Cable
Multimode
 MK-LT12C104MM 50/125μm (OM4), LT, MM, LSZH, 12 Core Universal Cable
50/125 μm OM4
 MK-LT16C104MM 50/125μm (OM4), LT, MM, LSZH, 16 Core Universal Cable
MK-LT24C104MM 50/125μm (OM4), LT, MM, LSZH, 24 Core Universal Cable
Tight Buffered Cable
MK-TB4C102MM 50/125μm (OM2) TB, MM LSZH, 4 Core Universal Cable
MK-TB6C102MM 50/125μm (OM2) TB, MM LSZH, 6 Core Universal Cable
Multimode
 MK-TB12C102MM 50/125μm (OM2) TB, MM LSZH, 12 Core Universal Cable
50/125 μm OM2
 MK-TB16C102MM 50/125μm (OM2) TB, MM LSZH, 16 Core Universal Cable
MK-TB24C102MM 50/125μm (OM2) TB, MM LSZH, 24 Core Universal Cable
MK-TB4C103MM 50/125μm (OM3) TB, MM LSZH, 4 Core Universal Cable
MK-TB6C103MM 50/125μm (OM3) TB, MM LSZH, 6 Core Universal Cable
Multimode
 MK-TB12C103MM 50/125μm (OM3) TB, MM LSZH, 12 Core Universal Cable
50/125 μm OM3
 MK-TB16C103MM 50/125μm (OM3) TB, MM LSZH, 16 Core Universal Cable
MK-TB24C103MM 50/125μm (OM3) TB, MM LSZH, 24 Core Universal Cable
MK-TB4C104MM 50/125μm (OM4) TB, MM LSZH, 4 Core Universal Cable
MK-TB6C104MM 50/125μm (OM4) TB, MM LSZH, 6 Core Universal Cable
Multimode
 MK-TB12C104MM 50/125μm (OM4) TB, MM LSZH, 12 Core Universal Cable
50/125 μm OM4
 MK-TB16C104MM 50/125μm (OM4) TB, MM LSZH, 16 Core Universal Cable
MK-TB24C104MM 50/125μm (OM4) TB, MM LSZH, 24 Core Universal Cable

How Can We Help You?

Speak With Microlink Representive Today.

Contact Us
