CAT6A 23 AWG S/FTP
- Infrastructure
- Cables
- CAT6A 23 AWG S/FTP
FEATURES
- LSZH-IEC 60332-1; IEC 60754 1&2; IEC 61034-2
- Specified and tested upto 500MHz or higher if required.
- Excellent RFI/EMI interference attenuation to enable
installation in high electrical noise locations. - Compliant to American Standard ANSI/TIA 568-C.2,
- International Standard ISO/IEC 11801 Class E
- 25 years system warranty available
- Blue, Grey, Violet or Customer Specific Colours
High Quality
Durability
Finest Precision
DESCRIPTION

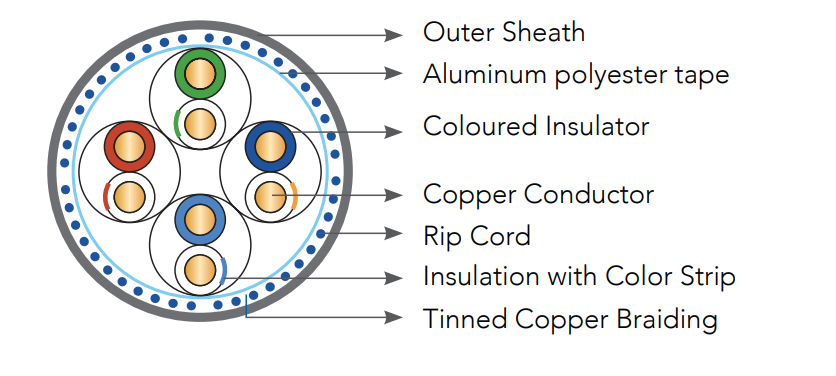

23 AWG copper wire insulated with Polyethylene. Two insulated conductors twisted together to form a pair and four such pairs covered by Aluminum foil polyester tape, core unit overall braided with ATC, jacketed with flame retardant PVC/LSZH. Enhanced performance cable enables delivering the high-speed network.
COLOUR CODE
| PAIR | SPECIFICATIONS |
|---|---|
| 1 | Blue - White or white with color stripe |
| 2 | Orange - White or white with color stripe |
| 3 | Green - White or white with color stripe |
| 4 | Brown - White or white with color stripe |
APPLICATIONS
- 10G BASE-T (IEEE 802.3)
- 1000 BASE-T (IEEE 802.3ab)
- 1000 BASE-TX
- Data center I/O consolidation
- Back Bone aggregation
- Consolidation of network interconnects
- Parrellel processing and High
- Speed Computing
- Other Legacy LAN and application Video, BAS
- Meets IEEE802.3af & 802.3at PoE
PRODUCT SPECIFICATION
| CHARACTERISTIC | SPECIFICATIONS |
|---|---|
| Maximum tensile load | 110 N (installation) |
| Minimum bend radius | 8 x cable outer diameter |
| Temperature | 0°C to +50°C (installation) -10°C to +60°C (operation) |
ELECTRICAL PROPERTIES @20 DEG C
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| Characteristic Impedance | 100+/- 15 Ohms |
| Conductor Resistance | Max < 9.38 Ohms/100m |
| Conductor Resistance Unbalance | Max 5% |
| Mutual Capacitance | 5.6nF/100m |
| Delay Skew | Max 45 ns/100m |
| Propogation Delay | < 536 ns/100m @ 500MHz |
| PACKAGING |
|---|
| 305m - Reel |
| 500m / 1000m - Reel |
ORDER INFORMATION
| PART NUMBER | PRODUCT DESCRIPTION | OUTER DIAMETER(MM) |
|---|---|---|
| MK-C6ASF23P | Cat6A 4X2X23 AWG S/FTP, PVC | 7.8 |
| MK-C6ASF23L | Cat6A 4X2X23 AWG S/FTP, LSZH | 7.8 |
