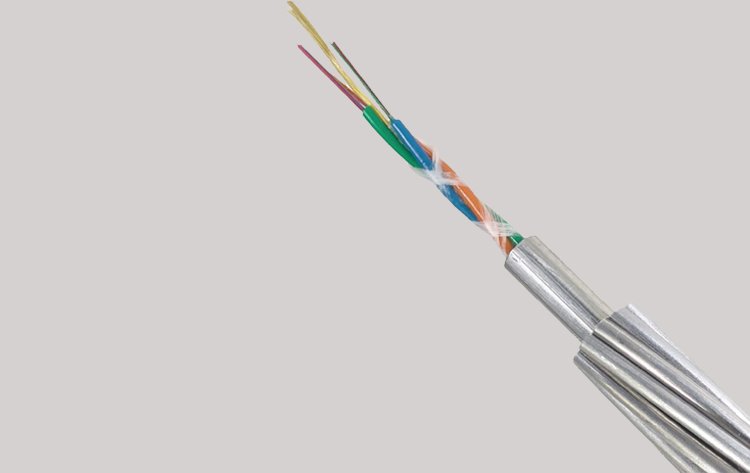

OPGW Cable
- Infrastructure
- Cables
- OPGW Cable
FEATURES
- Fiber counts up to 144
- Fiber bearing units similar to that of other fiber optic cable such as ADSS and underground cable
- Splicer familiarity and less splicing prep time required
- Aluminum pipe provides high crush resistance and good electrical performance
- 25 years system warranty
- Ability to be sectionalized
- Category OS2
High Quality
Durability
Finest Precision
DESCRIPTION
OPGW provides all of the benefits of a traditional shield wire, such as providing short circuits a path to ground and protecting the circuits from lightning strikes, in addition to providing an optical pathway for communication.
APPLICATIONS
- Energy Market
- Transmission
- Right-of-Way
- Top most part of the structure (shield wire position)
QUALIFICATIONS
| GOVERNING BODY | STANDARD CODE | COMPONENT |
|---|---|---|
| IEEE | 1138 | Cable |
| IEC | 60794-4 | Cable |
| TIA | 598-D | Fiber |
| ASTM | B415 | Alumium Clad Steel Wire (ACS wire) |
| ITU.T | G.652D / G.657A/B | Fiber |
TEMPERATURE SPECIFICATIONS
| Operation | -40ºC to +85ºC |
| Storage | -50ºC to +85ºC |
| Installation | -30ºC to +55ºC |
ORDER INFORMATION
| PART NUMBER | DESCRIPTION |
|---|---|
| OPGW-G652D-B1-80 | 24 Core, 14KA, B1-80 (central optical) |
| OPGW-G652D-B1-110 | 24 Core, 14KA, B1-110 (Double Layer AS) |
