Fiber Optic Cable Outdoor

fiber-optic-cable-outdoor

FEATURES

  • Fiber-count 2 and 4 fibers
  • Single mode options available
  • Compact cable construction
  • FRP strength member
  • Suitable for tight corners and bends
  • Metal messenger wire
  • Individually colored optical fibers
  • Conforms to IEC, TIA and Telcordia standards
  • Standard cable length of 2km
Datasheet (PDF)

High Quality

Durability

Finest Precision

DESCRIPTION

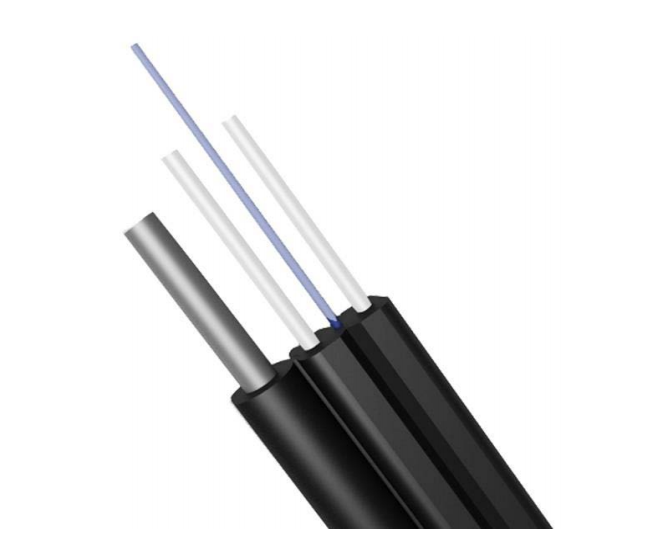

MICROLINK FTTH Drop Cable is made of 1 to 4, 250μm individually colored optical fibers with fiber reinforced strength members, steel wire which also acts as messenger wire and UV resistant Low Smoke Zero Halogen (LSZH) or PE jacket. The steel wire provides additional strength suitable for aerial applications.

APPLICATIONS

  • FTTx applications
  • CCTV

APPLICATION

  • ITU.T G.652D / G.657A/B
  • IEC 60332-1-2, IEC 60754-1,2 & IEC 61034-2

FIBER SPECIFICATIONS

PARAMETERS UNIT VALUE
Outer Diameter mm 5.0 x 2.0
Long Term Tensile Strengt N 300
Short Term Tensile Strength N 600
Long Term Crush Resistance N/100mm 1000
Short Term Crush Resistance N/100mm 2000
Storage Temperature °C -20 ~ +70
Operating Temperature °C -20 ~ +70
Nominal Cable Weight Kg/Km 20

ORDER INFORMATION

PART NUMBER DESCRIPTION
MK-TB2C100SM-ARFTT 9/125µm (OS1/2) TB, SM, LSZH 2 Core FFTH Aeriac FIG 8 Drop Cable
MK-TB4C100SM-ARFTT 9/125µm (OS1/2) TB, SM, LSZH 4 Core FFTH Aeriac FIG 8 Drop Cable
