CAT6 – STP
- Infrastructure
- Copper Systems
- CAT6 – STP
FEATURES
- Easy and fast tool-free termination
- Fits all keystone-style face plates and floor boxes
- Suitable for modular screened patch panel installation
- Choice of color
- Mounts in shutter
- 25 Year system warranty
- Support Class E/category 6 standards networks
- Terminates 22AWG to 26AWG cables
- Supports Gigabit Ethernet
- IDC point at 90° & 180°
High Quality
Durability
Finest Precision
DESCRIPTION
MICROLINK Category 6 tool-free RJ-45 keystone jacks exceed the transmission line performance requirements of IEC and TIA for CLASS E/Category 6 systems. Each Category 6 tool-free RJ-45 keystone jack complies with IEC 60603-7-5 (shielded) and supports all applications designed for CLASS E networks, as defined within ISO/IEC 11801 (2nd Edition):2010 including ATM 1200, 1000BASET (Gigabit Ethernet) and 1G FCBASE-T.
APPLICATIONS
- Support Class E/category 6 standards networks
- Terminates 22AWG to 26AWG cables
STANDARDS
RoHS Compliant
ISO/IEC 11801-1:2017
EN 50173-1:2011
ANSI/TIA 568-2.D
UL-94-V-0
TECHNICAL SPECIFICATIONS
| PARAMETERS | DESCRIPTION |
|---|---|
| Shell Material | Zinc and Nickel plating |
| Jack Wire | Stamp Pin 0.35mm, Phosphor Bronze Gold over Nickel Plating |
| IDC Conductor | 0.5mm Phosphor Bronze, Tin-plating |
| Jack Contact Life | Min. 750 Insertions |
| Wiring Block Life | Min. 200 term. cycles |
| Termination | 180° Termination |
| Termination Wiring | TIA-568A or TIA-568B |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7 |
| RoHS | Compliant |
| Warranty | 25 Years System Warranty |
| Packing | 25pcs per carton |
ORDER INFORMATION
| PART NUMBER | DESCRIPTION |
|---|---|
| MK-C6F90 | CAT6 STP Keystone Jack 90° |

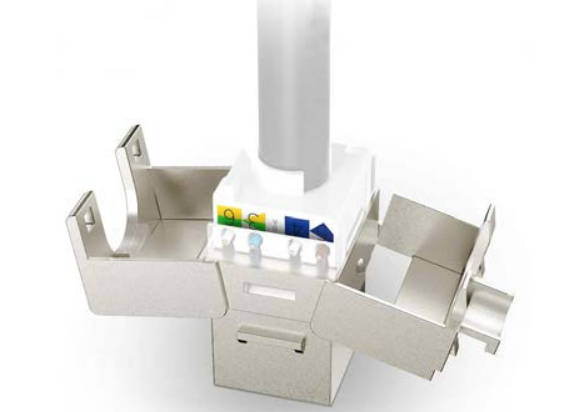

| MK-C6F180 | CAT6 STP Toothless Keystone Jack 180° Butterfly Style |
