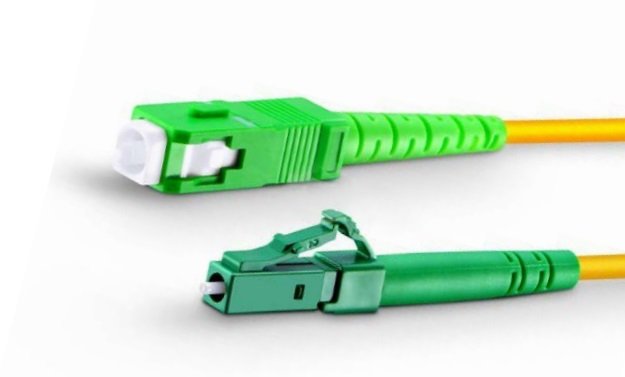

Singlemode Fiber Optic Patch Cords

FEATURES

  • High-quality zirconia ferrules.
  • Good repeatability and interchangeability.
  • Connectors LC, SC, ST, FC, LSH, MTRJ, MU.
  • Flame-retardant, rugged and durable jacket.
  • Printing helps clarify and recognize different cables.
  • Factory terminated and tested.
  • 25 years system warranty.
  • Bend Insensitive construction.
  • Os1 & Os2 are available

Durability

High Quality

Fiber Duplex Connector

UPDC

Finest Precision

DESCRIPTION

Bend Insensitive Fiber Optic Cable Structure

MICROLINK Patchcord range is suitable for telecommunication networks, data processing networks, FTTX, FTTH, and some critical applications. The patch cords provide flexible interconnection to active equipment, passive optical devices, and cross-connect. We offer a diverse range of single-fiber ferrule connectors, which are manufactured with precision factory mounting and polishing techniques to assure high transmission quality.

STANDARDS

RoHS, ISO 9001 Compliant
TIA 604 (FOCIS)
TIA/EIA 492AAAE
IEC 61754
IEC 60793-2-10
IEC 61300-3-35
YD/T1272.1-2003

TECHNICAL SPECIFICATIONS

PHYSICAL CHARACTERISTICS DESCRIPTION
Connector Types End A LC/SC/ST/FC/LSH/MU/MTRJ
Connector Types End B LC/SC/ST/FC/LSH/MU/MTRJ
Polish Type SMF: UPC-UPC; UPC-APC; APC-UPC; APC-APC
Connector Ferrule Zirconia Ceramic
Cable Outside Diameter Duplex: 2.0/3.0mm, Simplex: 0.9/2.0/3.0mm
Interchangeability ≤0.2dB
Vibration ≤0.2dB
Minimum Bend Radius SMF: 10mm

TECHNICAL DRAWING
