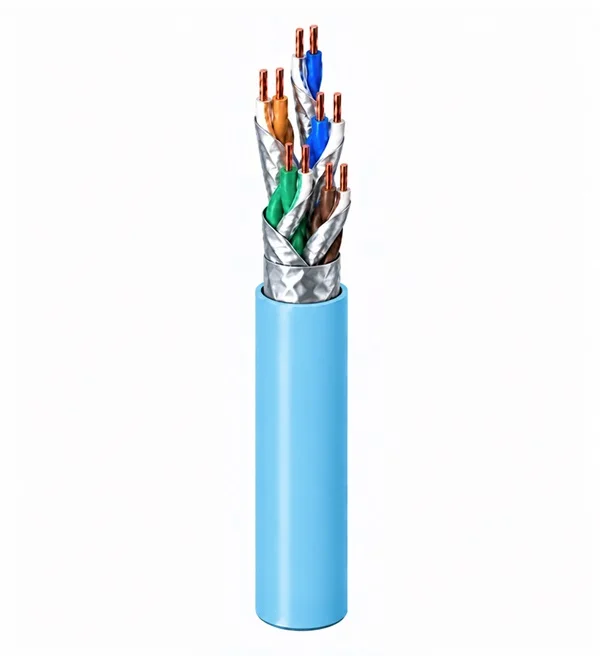

CAT6A F/FTP – Data Cable
- Infrastructure
- Cables
- CAT6A F/FTP – Data Cable
FEATURES
- PVC-CM
- LSZH-IEC 60332-1; IEC 60754 1&2; IEC 61034-2
- Excellent RFI/EMI interference attenuation to enable
- installation in high electrical noise locations.
- Specified and tested upto 500MHz or higher if Required
- Compliant to American Standard ANSI/TIA 568-C.2 Cat6a,
- International Standard ISO/IEC 11801 Class E
- 25 years system warranty available
High Quality
Durability
Finest Precision

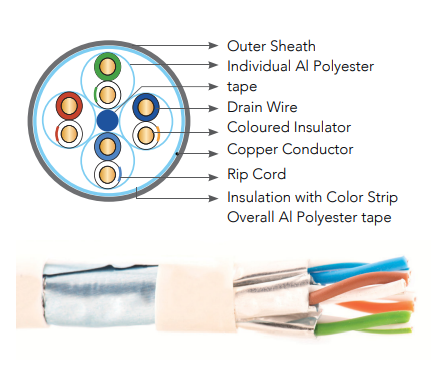

DESCRIPTION
23 AWG copper wire insulated with Polyethylene. Two
insulated conductors twisted together to form a pair and
four such pairs covered by a Aluminum polyster tape form
the core unit, overall jacketed with flame retardant PVC/
LSZH. Enhanced performance cable enables delivering
high speed network.
COLOUR CODE
| PAIR | SPECIFICATIONS |
|---|---|
| 1 | Blue - White or white with color stripe |
| 2 | Orange - White or white with color stripe |
| 3 | Green - White or white with color stripe |
| 4 | Brown - White or white with color stripe |
APPLICATIONS
- 10G BASE-T (IEEE 802.3)
- 1000 BASE-T (IEEE 802.3ab)
- 1000 BASE-TX
- Data center I/O consolidation
- Back Bone aggregation
- Consolidation of network interconnects
- Parrellel processing and High Speed Computing
- Other Legacy LAN and
- application Video, BAS
- Meets IEEE802.3af & 802.3at PoE
PRODUCT SPECIFICATION
| CHARACTERISTIC | SPECIFICATIONS |
|---|---|
| Maximum tensile load | 110 N (installation) |
| Minimum bend radius | 8 x cable outer diameter |
| Temperature | 0°C to +50°C (installation) -10°C to +60°C (operation) |
TRANSMISSION/CHARACTERISTICS - 100M
| Frequency (Mhz) | Max attenuation (dB/100m) |
RL(dB) | NEXT (dB) | PS NEXT(dB) | ACRF (dB) | PSACRF (dB) |
|---|---|---|---|---|---|---|
| 1 | 2.1 | 20.0 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 3.8 | 23.0 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 5.9 | 25.0 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 7.5 | 25.0 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 8.4 | 25.0 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 10.5 | 23.6 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 15 | 21.5 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 19.1 | 20.1 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 27.6 | 18.0 | 39.8 | 37.8 | 21.8 | 18.8 |
| 250 | 31.1 | 17.3 | 38.3 | 36.3 | 19.8 | 16.8 |
| 300 | 34.3 | 16.8 | 37.1 | 35.1 | 18.3 | 15.3 |
| 500 | 45.3 | 15.2 | 33.8 | 31.8 | 13.8 | 10.8 |
ELECTRICAL PROPERTIES @20 DEG C
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| Characteristic Impedance | 100+/- 15 Ohms |
| Conductor Resistance | Max < 9.38 Ohms/100m |
| Conductor Resistance Unbalance | Max 5% |
| Mutual Capacitance | 5.6nF/100m |
| Delay Skew | Max 45 ns/100m @ 100MHz |
| Propogation Delay | < 536 ns/100m @ 250MHz |
| PACKAGING |
|---|
| 305m - Reel |
| 500m / 1000m - Reel |
ORDER INFORMATION
| PART NUMBER | PRODUCT DESCRIPTION | OUTER DIAMETER(MM) |
|---|---|---|
| MK-C6AFF23P | Cat 6a 4x2x23 AWG F/FTP, PVC | 7.8 |
| MK-C6AFF23L | Cat 6a 4x2x23 AWG F/FTP, LSZH | 7.8 |
