CAT6 – UTP

cat6-utp2
cat6-utp3
cat6-utp4-new

FEATURES

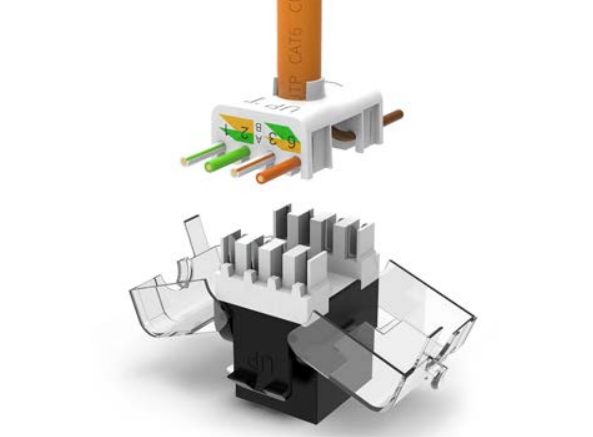

  • Easy and fast tool-free termination
  • Fits all keystone-style face plates and floor boxes
  • Suitable for modular screened patch panel installation
  • Choice of color
  • Mounts in shutter
  • 25 Year system warranty
  • Contacts plated with 50-micron inches of gold
  • Fits all keystone-style face plates and floor boxes
  • Suitable for modular screened patch panel installation
  • Supports Gigabit Ethernet
  • IDC point at 90° & 180°
Datasheet (PDF)

High Quality

Durability

Finest Precision

DESCRIPTION

MICROLINK Category 6 tool-free RJ-45 keystone jacks exceed the transmission line performance requirements of IEC and TIA for CLASS E/Category 6 systems. Each Category 6 tool-free RJ-45 keystone jack complies with IEC 60603-7-4 (unshielded) and support all applications designed for CLASS E networks, as defined within ISO/IEC 11801 (2nd Edition):2010 including ATM 1200, 1000BASET (Gigabit Ethernet) and 1G FCBASE-T.

APPLICATIONS

  • Contacts plated with 50-micron inches of gold
  • Fits all keystone-style face plates and floor boxes
  • Suitable for modular screened patch panel installation

STANDARDS

RoHS Compliant
ISO/IEC 11801-1:2017
EN 50173-1:2011
ANSI/TIA 568-2.D
UL-94-V-0

TECHNICAL SPECIFICATIONS

PARAMETERS DESCRIPTION
Shell Material PC UL 94V-0
Jack Wire Stamp Pin 0.35mm, Phosphor Bronze Gold over Nickel Plating
IDC Conductor 0.5mm Phosphor Bronze, Tin-plating
Jack Contact Life Min. 750 Insertions
Wiring Block Life Min. 200 term. cycles
Termination 180° Termination
Termination Wiring TIA-568A or TIA-568B
Operating Temperature -10°C / +60°C
Compliance ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified
RoHS Compliant
Warranty 25 Years System Warranty
Packing 25pcs per carton

ORDER INFORMATION

PART NUMBER DESCRIPTION
MK-C6J90-WH CAT6 UTP Keystone Jack 90° White
MK-C6J90-BK CAT6 UTP Keystone Jack 90° Black
MK-C6J180-BK CAT6 UTP Toolless Jack 180° Black
