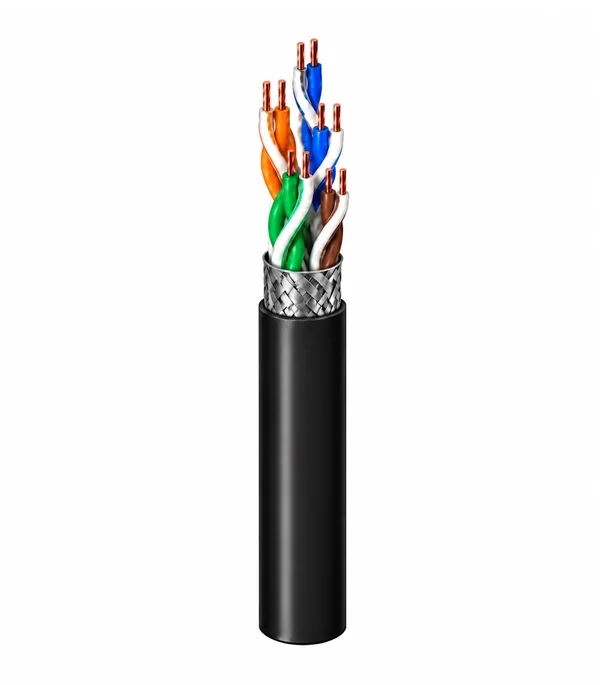

CAT6 UTP – Armored Cable
CAT6 UTP – Armored Cable
- Infrastructure
- Cables
- CAT6 UTP – Armored Cable
FEATURES
- FRLS/LSZH-IEC 60332-1; IEC 60754 1&2
- Specified and tested up to 250MHz
- Compliant to American Standard ANSI/TIA 568-C.2 Cat6,
- International Standard ISO/IEC 11801 Class E
- 25 years system warranty available
High Quality
Durability
Finest Precision

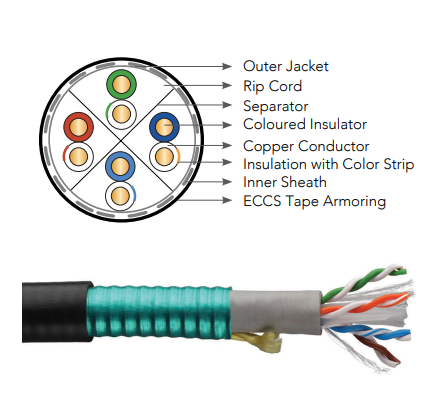

DESCRIPTION
23 AWG copper wire insulated with Polyethylene. Two
insulated conductors twisted together to form a pair
and four such pairs separated by a cross filler form the
core unit jacketed with flame retardant PVC/LSZH. Such
sheathed inner cable is armored with a Corrugated Steel
Tape to provide extra mechanical protection and Jacketed
with Outer UV Stabilized FRLS, PE or LSZH Material
COLOUR CODE
| PAIR | SPECIFICATIONS |
|---|---|
| 1 | Blue - White Blue |
| 2 | Orange - White Orange |
| 3 | Green - White Green |
| 4 | Brown - White Brown |
APPLICATIONS
- 10 Base T (IEEE 802.3)
- 100 Base T (IEEE 802.3U)
- 1000 BASE-T (IEEE 802.3ab)
- 1000 BASE-TX
- TP-PMD (ANSI X3T9.5)
- 100 Mbps CDDI
- ATM 155
- 4/16 Mbps Token Ring (IEEE 802.5)
- Meets IEEE802.3af & 802.3at PoE
- Suitable for Outdoor Application.
- LSZH sheath facilitates Indoor/Outdoor Applications
PRODUCT SPECIFICATION
| CHARACTERISTIC | SPECIFICATIONS |
|---|---|
| Maximum tensile load | 500 N (installation) |
| Minimum bend radius | 820 x cable outer diameter |
| Temperature | 10°C to +60°C (installation) -30°C to +75°C (operation) |
TRANSMISSION/CHARACTERISTICS - 100M
| Frequency (Mhz) | Insertion loss(dB)(dB/100m) | NEXT (dB) | ACR-N(dB) | RL(dB) | PS NEXT(dB) | PS ACR-N (dB) | ACR-F(dB) | PS ACR-F(dB) |
|---|---|---|---|---|---|---|---|---|
| 1 | 3 | 65 | 62 | 19 | 62 | 59 | 63.3 | 60.3 |
| 4 | 4 | 63 | 59 | 19 | 60.5 | 56.5 | 51.2 | 48.2 |
| 10 | 6.3 | 56.6 | 50.2 | 19 | 54 | 47.7 | 43.3 | 40.3 |
| 20 | 9 | 51.6 | 42.6 | 17.5 | 49 | 39.9 | 37.2 | 34.2 |
| 25 | 10.1 | 50 | 39.9 | 17 | 47.3 | 37.2 | 35.3 | 32.3 |
| 62.5 | 16.5 | 43.4 | 26.9 | 14 | 40.6 | 24.1 | 27.3 | 24.3 |
| 100 | 21.3 | 39.9 | 18.6 | 12 | 37.1 | 15.8 | 23.3 | 20.3 |
| 250 | 35.9 | 33.1 | -2.8 | 8 | 30.2 | -5.8 | 15.3 | 12.3 |
ELECTRICAL PROPERTIES @20 DEG C
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| Characteristic Impedance | 100+/- 15 Ohms |
| Conductor Resistance | Max < 9.38 Ohms/100m |
| Conductor Resistance Unbalance | Max 5% |
| Mutual Capacitance | 5.6nF/100m |
| Delay Skew | Max 45 ns/100m @ 100MHz |
| Propogation Delay | < 536 ns/100m @ 250MHz |
| PACKAGING |
|---|
| 305m - Reel |
| 500m / 1000m - Reel |
ORDER INFORMATION
| PART NUMBER | PRODUCT DESCRIPTION | OUTER DIAMETER(MM) |
|---|---|---|
| MK-C6U23APEP | Cat 6 4x2x23 AWG U/UTP, PVC,PE | 10.0 |
| MK-C6U23APEL | MKCat 6 4x2x23 AWG U/UTP, LSZH,PE | 10.0 |
