CAT5E U/UTP – Data Cable
- Infrastructure
- Cables
- CAT5E U/UTP – Data Cable
FEATURES
- PVC-CM/CMR/CMX
- LSZH-IEC 60332-1; IEC 60754 1&2; IEC 61034-2
- Specified and tested upto 100MHz
- Compliant to American Standard ANSI/TIA 568-C.2,
- International Standard ISO/IEC 11801 Class D
- 25 years system warranty available
High Quality
Durability
Finest Precision

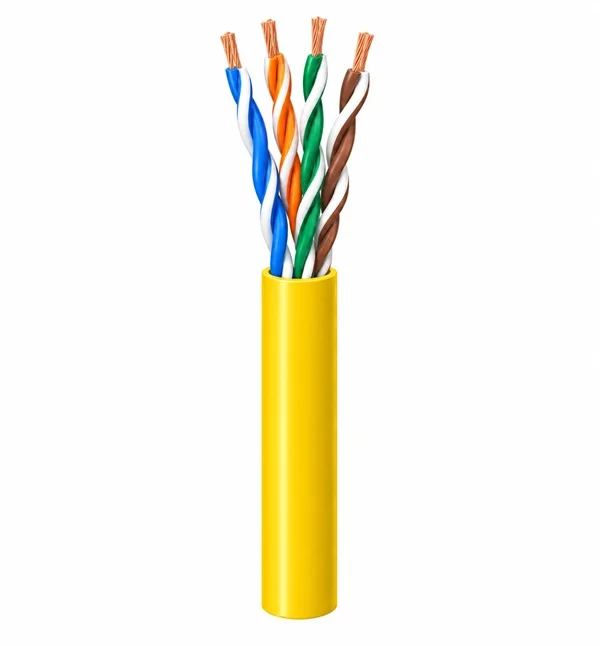

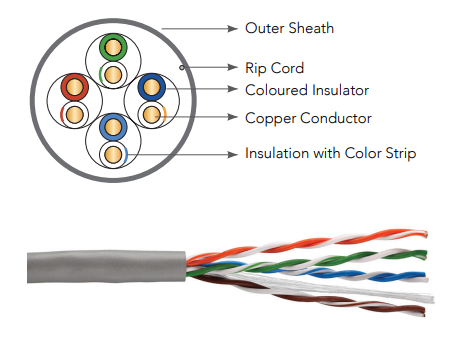

DESCRIPTION
24 AWG copper wire insulated with Polyethylene. Two
insulated conductors twisted together to form a pair and
four such pairs laid up to form the core unit jacketed with
flame retardant PVC/ LSZH. Enhanced performance cable
enables delivering high speed network.
COLOUR CODE
| PAIR | SPECIFICATIONS |
|---|---|
| 1 | Blue - White Blue |
| 2 | Orange - White Orange |
| 3 | Green - White Green |
| 4 | Brown - White Brown |
APPLICATIONS
- 10 Base T (IEEE 802.3)
- 100 Base T (IEEE 802.3U)
- 1000 BASE-T (IEEE 802.3ab)
- TP-PMD (ANSI X3T9.5)
- 100 Mbps CDDI
- ATM 155
- 4/16 Mbps Token Ring (IEEE 802.5)
- Meets IEEE802.3af & 802.3at PoE
PRODUCT SPECIFICATION
| CHARACTERISTIC | SPECIFICATIONS |
|---|---|
| Maximum tensile load | 1110 N (installationn) |
| Minimum bend radius | 4 x cable outer diameter |
| Temperature | 0°C to +50°C (installation) -10°C to +60°C (operation) |
TRANSMISSION/CHARACTERISTICS - 100M
| CHARACTERISTIC | Frequency (Mhz) | 1.00 | 4.00 | 8.00 | 10.00 | 16.00 | 20.00 | 25.00 | 31.25 | 62.50 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Return loss (dB) | Spec (Min) | 20.0 | 23.0 | 24.5 | 25.0 | 25.0 | 25.0 | 24.3 | 23.6 | 21.5 | 20.1 |
| Insertion loss(dB) | Spec (Max) | 2.0 | 4.1 | 5.8 | 6.5 | 8.2 | 9.3 | 10.4 | 11.7 | 17.0 | 22.0 |
| NEXT (dB) | Spec (Min) | 65.3 | 56.3 | 51.8 | 50.3 | 47.2 | 45.8 | 44.3 | 42.9 | 38.4 | 35.3 |
| PSNEXT (dB) | Spec (Min) | 62.3 | 53.3 | 48.8 | 47.3 | 44.2 | 42.8 | 41.3 | 39.9 | 35.4 | 32.3 |
| ELFEXT (dB) | Spec (Min) | 63.8 | 51.8 | 45.7 | 43.8 | 39.7 | 37.8 | 35.8 | 33.9 | 27.9 | 23.8 |
| PSELFEXT (dB) | Spec (Min) | 60.8 | 48.8 | 42.7 | 40.8 | 36.7 | 34.8 | 32.8 | 30.9 | 24.9 | 20.8 |
| ACR (dB) | Spec (Min) | 63.3 | 52.2 | 46.0 | 43.8 | 39.0 | 36.5 | 33.9 | 31.2 | 21.4 | 13.3 |
ELECTRICAL PROPERTIES @20 DEG C
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| Characteristic Impedance | 100+/- 15 Ohms @ 100MHz |
| Conductor Resistance | Max 9.38 Ohms/100MHz |
| Conductor Resistance Unbalance | Max 5% |
| Mutual Capacitance | 5.6nF/100m |
| Delay Skew | Max 45 ns/100m @ 100MHz |
| Propogation Delay | < 536 ns/100m @ 100MHz |
| PACKAGING |
|---|
| 305m - Reel |
| 500m / 1000m - Reel |
ORDER INFORMATION
| PART NUMBER | PRODUCT DESCRIPTION | OUTER DIAMETER(MM) |
|---|---|---|
| MK-C5U24P | Cat 5e 4x2x24 AWG U/UTP, PVC | 5.0 |
| MK-C5U24L | Cat 5e 4x2x24 AWG U/UTP, LSZH | 5.0 |
