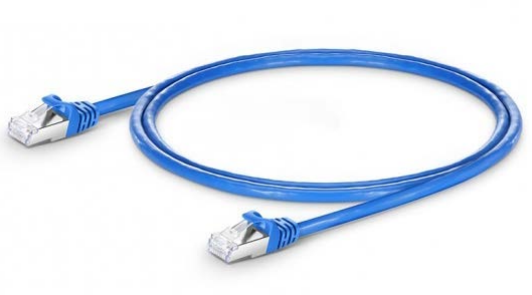

CAT-7 S/FTP

cat-7-s-ftp1
cat-6-f-utp1
cat-6-f-utp2

FEATURES

  • Protected by PVC CMX jacket
  • Stranded Oxygen-free Copper
  • Rated for 600MHz communications
  • Designed for 10GBase-T Ethernet
  • 26AWG 4-pair precision twisted cable
  • Molded strain relief with snagless design
  • RJ45 plugs with 50-micron gold-plated connectors
  • RoHS, CE compliance status
  • 25 Year system warranty
  • Rated for any 10GBase-T Ethernet
  • Ideal for switches, servers, patch panels, or other equipment
  • Perfect for data center and SMB applications.
  • A variety of lengths for all CAT7 SFTP cables
  •
Datasheet (PDF)

High Quality

Durability

Finest Precision

DESCRIPTION

MICROLINK Cat7 network patch cable is a cost-effective solution for data center and SMB applications. Design for computers, hubs, switches, routers, DSL/cable modems, and patch panels in Gigabit data center applications. With the fast transmission and excellent signal quality, it ensures peak performance through your LAN.

APPLICATIONS

  • Rated for any 10GBase-T Ethernet
  • Perfect for data center and SMB applications.
  • Ideal for switches, servers, patch panels, or other equipment

STANDARDS

RoHS Compliant
ISO/IEC 11801-1:2017
ANSI/TIA/EIA-568-C.2
IEC60603-7

TECHNICAL SPECIFICATIONS

PARAMETERS DESCRIPTION
Cable Type Cat7 Snagless
Cable Jacket PVC CMX (Round)
Conductor Material Oxygen-free Copper
Data Rate Support 10GBase-T
Gauge (AWG) 26 (7/0.16mm)
Max Transmission Distance 100m
Wire Scheme T568B, Straight
Operating Temperature -20 to +75°C (-4 to 167°F)
Shielding Type Shielded (SFTP)
Conductor Type Stranded
Standard Bandwidth 600MHz
Cable Outer Diameter (mm) 6.2 ± 0.3
Twisted Pairs 4 Pairs
Standard ISO/IEC 11801
Installation Temperature -10 to +50°C (14 to 122°F)

ORDER INFORMATION

PART NUMBER DESCRIPTION
MK-C7SFP1M-XX CAT7 1M Booted SFTP LSOH/PVC Patch Leads
MK-C7SFP3M-XX CAT7 3M Booted SFTP LSOH/PVC Patch Leads
MK-C7SFP5M-XX CAT7 5M Booted SFTP LSOH/PVC Patch Leads
