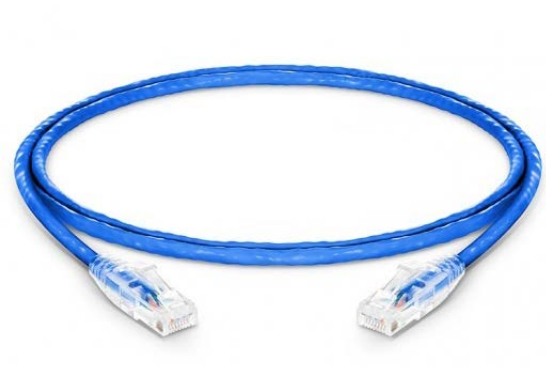

CAT-6 U/UTP
- Infrastructure
- Copper Systems
- CAT-6 U/UTP
FEATURES
- Conform to IEC, EIA-TIA performance requirements
- Gold-plated contact pins
- 24AWG premium-grade copper conductor
- Snag-less Connectors
- ETL-certified channel test
- Category 6 U/UTP
- Choice of lengths
- LS0H outer sheath
- Supports category 6 (Class E)
- Backward compatible
- Independently verified
- Networks running up to 250MHz applications
- 25 Year system warranty
- The connection between wall outlets or equipment
High Quality
Durability
Finest Precision
DESCRIPTION
MICROLINK Category 6 U/UTP patch cords are specifically designed and manufactured to deliver robust standards-based performance ensuring optimum bandwidth for today’s high-speed network applications.
Each Category 6 U/UTP patch cord exceeds the minimum specified performance for Category 6 U/UTP patch cords and support all CLASS E applications.
APPLICATIONS
- Supports category 6 (Class EA)
- Networks running up to 500MHz applications
- Connection between wall outlets or equipment
STANDARDS
RoHS Compliant
ISO/IEC 11801-1:2017
EN 50173-1:2011
ANSI/TIA 568-2.D
IEC 61156-5:2009+AMD1:2012 CSV
IEC 60332-1-2:2004
IEC 61034-2:2005+A1:2013
TECHNICAL SPECIFICATIONS
ORDER INFORMATION
| PARAMETERS | DESCRIPTION |
|---|---|
| Cable OD | 6.0 ±0.15mm |
| Insulators Diameter | 0.98 ±0.05mm |
| Termination Wiring | TIA-568B *other wiring method on request |
| Operating Temperature | -10°C / +60°C |
| Compliance | ANSI/TIA-568-C.2, ISO 11801, IEC 60603-7, ETL Verified |
| RoHS Compliance | Compliant |
| Warranty | 25 years System Warranty |
| Conductor | 24AWG stranded copper |
| Insulators Material | Polyolefin |
| PART NUMBER | DESCRIPTION |
|---|---|
| MK-C6UP1M-XX | CAT6 U/UTP Blade Patch Lead LSOH/PVC 1m |
| MK-C6UP2M-XX | CAT6 U/UTP Blade Patch Lead LSOH/PVC 2m |
| MK-C6UP3M-XX | CAT6 U/UTP Blade Patch Lead LSOH/PVC 3m |
| MK-C6UP5M-XX | CAT6 U/UTP Blade Patch Lead LSOH/PVC 5m |
